Program Overview
Scope covers facility readiness, compute/storage build, policy-aligned access, and AWS data exchange so CBSD can run combined clinical + discovery sequencing with predictable turnaround.
Mission Summary
- Converge legacy CBSD delivery items with refreshed rack, power, and network layouts.
- Guarantee dual-room resiliency: Sequencer Room (instrument + UPS) and Datacenter Room (compute, storage, data protection).
- Stand up automated transfers to Crown AWS tenant for analytics and partner sharing.
Key Highlights
- 10 Gb production VLAN4, 40 Gb data VLAN7, VLAN2 IPMI, VLAN10 work area.
- Three 500 TB tiers (primary, secondary, clinical isolation) with the data-protection bridge.
- Crown-standard TACACS+, syslog, RBAC enforcement on the management fabric.
Global Architecture

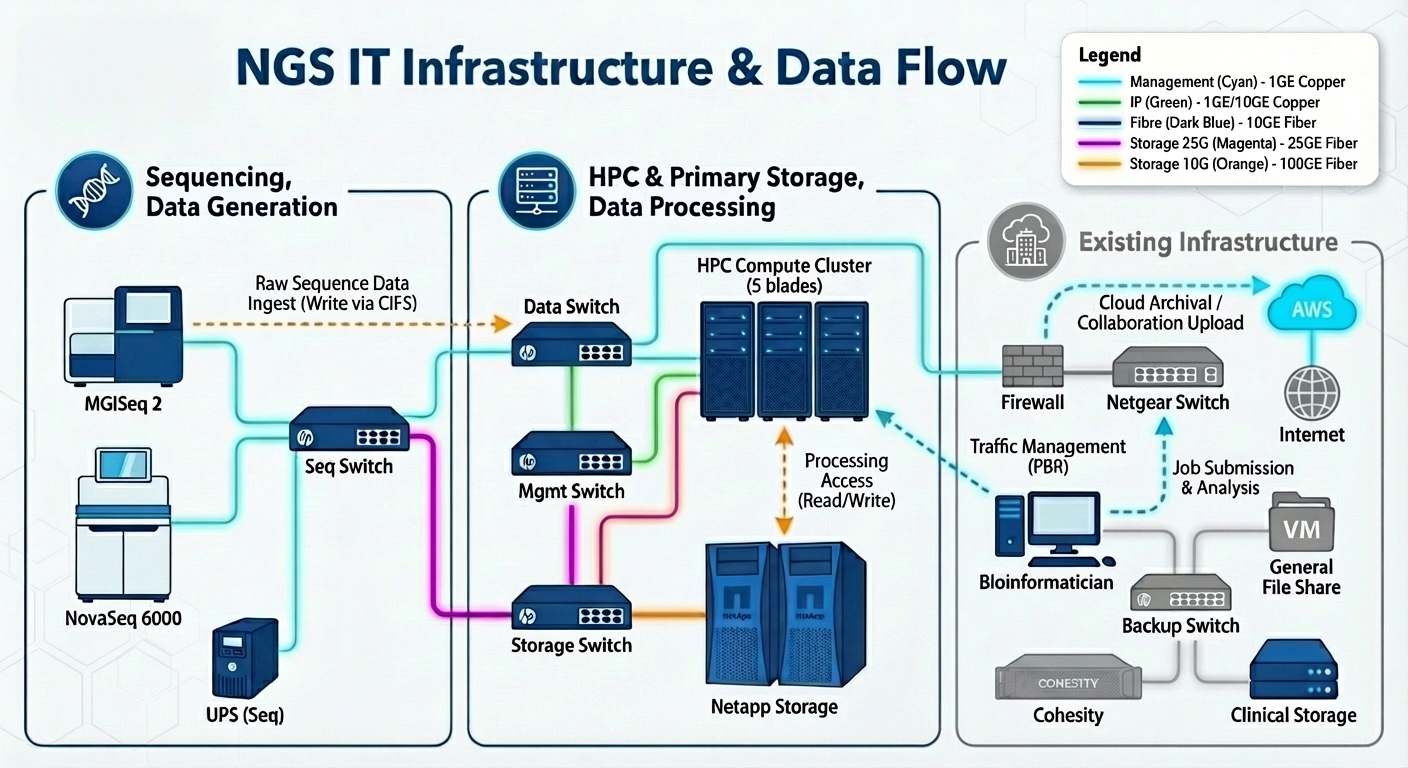

The architecture view now mirrors the provided “NGS IT Infrastructure & Data Flow” reference: Sequencing and data generation on the left, HPC and primary storage at the center, and existing infrastructure/AWS services on the right, tied together by the same color-coded fabrics.
Architecture Narrative: dual 10 Gb ingest feeds land on the sequencer switch, step across management, data, and storage switches into the five-blade HPC compute cluster, and write to the NetApp FAS2820 HA pair before Cohesity/clinical tiers replicate outward. Existing firewall + Netgear infrastructure provides policy-based routing to analysts, AWS S3/Glacier, and VM file shares without touching the protected sequencing VLANs.
Business & Data Flow
Sequencing Capture
MGISeq 2 and NovaSeq 6000 capture runs, write via CIFS to the sequencer switch, and post health/control data over 1 Gb management links.
Dual-Fabric Transit
10 Gb data and 25 Gb storage fabrics (Catalyst 9200L + Nexus 9300) carry payloads into the HPC rack while IPMI/OOB stays isolated on VLAN2.
HPC Processing
Dell PowerEdge R760xs blades execute pipelines under Slurm, writing to the NetApp HA pair and flagging workloads for discovery vs. clinical storage.
Collaboration & Cloud
Bioinformaticians access results via the legacy Netgear core, Cohesity snapshots replicate to clinical storage + AWS, and job submissions keep the loop closed.
Design Principles & Delivery Milestones
Design Tenets
- Segregate production, control, data, and work networks with explicit ACLs.
- Prefer dual-power, dual-path connectivity for every rack component.
- Automate validation: checksum, logging, and ticketing per run.
- Cloud exchanges gated by data-protection policy + encryption.
Success Metrics
- < 6 hours ingest-to-analysis SLA for 2 TB runs.
- RPO < 1 hr via data-protection snapshots + S3 replication.
- Instrument utilization ≥ 80% with no backlog.
- Zero critical audit findings for VLAN segmentation.
NGS Readiness Timeline
Facility build, storage mirror, cluster QA, and go-live checkpoints.
Dec '25 – Feb '26
Dec '25 · W1‒W4
Jan '26 · W1‒W4
Feb '26 · W1
Infrastructure & Facilities
Power Gate
Storage & Protection
Mirror Ready
Compute / Ops
Validation
Cutover & Handoff
Day 0
Current CBSD Baseline
Facility
- Dedicated cold aisle ready; 38,000 BTU/h HVAC confirmed.
- Two 42U racks reserved; PDUs awaiting final circuit test.
Network
- Legacy core switch ports exhausted; temporary ToR installed.
- VLAN2/4/7 definitions approved; ACLs in staging.
Storage & Backup
- 500 TB landing shelves delivered; awaiting rack-in.
- Data-protection cluster licensed; policies drafted.
Process
- Runbooks updated to include AWS data escrow.
- LIMS integration in progress; IAM roles mapped.
Execution Checklist by Zone
1 · Lab & Sequencer Room
- Install dual 10 Gb ToR with VLAN4 trunks + VLAN2 OOB.
- Provide UPS-backed receptacles (2x30A) for each sequencer.
- Patch fiber pairs to datacenter core, label per Crown standard.
- Calibrate humidity + particle sensors feeding facility BMS.
2 · Datacenter & Racks
- Rack two management controllers, five compute nodes, three storage shelves.
- Deploy dual PDUs per rack; map to UPS + utility.
- Terminate protection + AWS gateways in upper U for airflow.
- Connect TACACS+/syslog uplinks to security core.
3 · Physical Cabling
- Fiber trunk: Sequencer room → Datacenter (OM4, 12-core).
- Cat6A patch for VLAN10 work area + console runs.
- Label 40 Gb QSFP28 runs for storage mesh, include spare.
- Document cross-connect schedule in NetBox.
4 · Compute, Storage, Cloud
- Install RHEL 9 + Slurm on cluster; configure container runtime.
- Carve GPFS pools (500 TB primary/secondary/clinical) with QoS tiers.
- Configure the data-protection platform to replicate to AWS S3 + Glacier; test Snowball fallback.
- Publish user access via Okta + Crown RBAC; map VPN/DX routes.
5 · User & Remote Access
- Provision analyst pods with VLAN10 + secure jump hosts.
- Enable remote monitoring (Grafana, Splunk) with RBAC roles.
- Implement service catalog for job submission + data pulls.
- Train support teams on escalation + DR exercises.
Excel rack map: 42U positions from CBSD-NGS&HPC-Cost Estimation.xlsx are mirrored verbatim so facilities can cross-check onsite labeling.
| U | Rack 01 · Sequencer / Storage | Rack 02 · Compute / Fabric |
|---|---|---|
| 42 | — | — |
| 41 | — | — |
| 40 | — | — |
| 39 | Cisco C9200L (Mgmt) | Cisco 9300 (25 Gb) |
| 38 | — | — |
| 37 | — | — |
| 36 | Cisco C9200L (Data) | Cisco 9300 (10 Gb) |
| 35 | — | — |
| 34 | — | — |
| 33 | — | — |
| 32 | — | — |
| 31 | — | — |
| 30 | — | — |
| 29 | — | — |
| 28 | — | Dell R760xs |
| 27 | — | — |
| 26 | — | — |
| 25 | — | Dell R760xs |
| 24 | — | — |
| 23 | — | — |
| 22 | PDU | PDU |
| 21 | — | — |
| 20 | — | Dell R760xs |
| 19 | — | — |
| 18 | — | — |
| 17 | NetApp FAS2820 | Dell R760xs |
| 16 | — | — |
| 15 | — | — |
| 14 | — | Dell R760xs |
| 13 | — | — |
| 12 | — | — |
| 11 | — | — |
| 10 | — | — |
| 9 | — | — |
| 8 | — | — |
| 7 | NetApp FAS2820 | NetApp FAS2820 |
| 6 | — | — |
| 5 | — | — |
| 4 | — | — |
| 3 | — | — |
| 2 | — | — |
| 1 | PDU | PDU |
Network & VLAN Plan
| VLAN | Name / Purpose | IP Space | Bandwidth | Notes |
|---|---|---|---|---|
| 2 | IPMI / OOB | 172.23.64.0/24 | 1 Gb | Management BMCs, UPS, PDUs, storage controllers, TACACS+. |
| 4 | 10 Gb Production | 172.23.63.0/24 | 10 Gb | Sequencers, interface servers, compute entry, AWS gateway. |
| 5 | Core Services | 172.23.62.0/24 | 10 Gb | Management appliances, jump hosts, automation. |
| 7 | 40 Gb Storage | 10.0.6.0/24 | 40 Gb | GPFS fabric for three 500 TB tiers, data-protection ingest. |
| 10 | Work Area | 172.23.70.0/24 | 1 Gb | Analyst workstations, remote admin, LIMS terminals. |
Infrastructure Detail
| Domain | Components | Notes |
|---|---|---|
| Servers | 2 × management controllers, 5 × compute nodes, 2 × interface servers | RHEL 9 + Slurm, container stack (Singularity/Apptainer), Ansible automation. |
| Storage | 3 × 500 TB landing tiers, data-protection cluster | Primary & secondary synchronous; clinical tier isolated but policy-visible. |
| Network | 10 Gb ToR (dual), 40 Gb spine, enterprise work access switches, VPN/DX edge | ACL + QoS on the management gateway; NetBox source of truth. |
| UPS & Power | 2 × 30 kVA UPS, dual PDUs/rack, environmental sensors | N+1, SNMP exports to facility BMS, monthly battery test. |
| OS & Platform | RHEL 9, Slurm 23, GPFS, data-protection suite, AWS CLI / Snowball Edge | Integrated logging to Splunk, monitoring via Grafana/Prometheus. |
| Access & Security | Okta SSO, Crown RBAC, TACACS+, Syslog, Vault secrets, MFA VPN | Runbooks for least-privilege job submission + data sharing. |
Bill of Materials & Budget (USD)
Figures below are transcribed directly from CBSD-NGS&HPC-Cost Estimation.xlsx so the webpage matches the latest excel-based sourcing package.
| Item | Brand / Model | Qty | Unit Price | Subtotal | Notes |
|---|---|---|---|---|---|
| Server & Storage | |||||
| Analysis Servers | Dell PowerEdge R760xs | 5 | $17,000 | $85,000 | 2× Intel Gold 6526Y, 8×64 GB RDIMM, Broadcom 57414 10/25 Gb. |
| NGS Storage (HA) | NetApp FAS2820 Dual Controller | 2 | $150,000 | $300,000 | 48×22 TB, 8×25 Gb SFP28, SnapMirror for 500 TB usable. |
| NAS / Clinical Storage | NetApp FAS2820 Dual Controller | 1 | $150,000 | $150,000 | Isolated CIFS share for clinical workloads. |
| Precision Workstations | Dell Precision 3680 Tower | 2 | $4,300 | $8,600 | i7-14700, 2×32 GB, 2×2 TB SSD RAID1, Win 11 Pro. |
| OS & Platform Stack | RHEL 9, Slurm 23, GPFS, data-protection suite | 5 | $799 | $3,995 | Subscription incl. AWS CLI / Snowball Edge tooling. |
| Network & Optics | |||||
| Core Fabric Switch | Cisco N9K-C93108TC-FX3 | 1 | $25,000 | $25,000 | 48×1/10G-T, 6×40/100 G QSFP28. |
| 25 Gb Fabric Switch | Cisco N9K-C93180YC-FX3 | 1 | $30,000 | $30,000 | 48×1/10/25 Gb SFP28, 6×40/100 G QSFP28. |
| Mgmt Access Switch | Cisco C9200L-48T-4X-E | 1 | $5,500 | $5,500 | 48×1 Gb + 4×10 Gb uplinks, Network Essentials. |
| Data Access Switch | Cisco C9200L-48T-4X-E | 1 | $5,500 | $5,500 | Dedicated for sequencer/data VLANs. |
| QSFP Active Optical Cable | QSFP-100G-AOC5M | 2 | $1,500 | $3,000 | 5 m AOC for fabric interconnect. |
| 25 Gb SFP28 Optics | Cisco SFP-25G-SR-S | 18 | $450 | $8,100 | NetApp storage uplinks. |
| 10 Gb SFP+ Optics | Cisco MA-SFP-10GB-SR | 4 | $300 | $1,200 | Clinical storage + legacy tie-ins. |
| Fiber Patch Kit · 10 m | LC-LC, MM, OM4 | 15 | $200 | $3,000 | NetApp storage & clinical storage. |
| Fiber Patch Kit · 5 m | LC-LC, MM, OM4 | 15 | $150 | $2,250 | Short intra-rack jumpers. |
| Cat6A Copper Cables | 10 m factory bundle | 10 | $0 | $0 | Sequencer kit inclusion. |
| Cat6 Copper Cables | 10 m (Data & IPMI) | 10 | $0 | $0 | Bundled with switch purchase. |
| Cat6 Copper Cables | 5 m (Rack jumpers) | 10 | $0 | $0 | No-charge accessory. |
| Accessory Materials | Cable trays, labels, hardware | 1 | $1,000 | $1,000 | Structured cabling labor kit. |
| Facility & Power | |||||
| Dedicated Cold Aisle | HVAC / 38,000 BTU/h | 1 | $0 | $0 | Already provisioned; no uplift. |
| 42U Racks + Dual PDUs | Standard rack cabinet | 2 | $2,010 | $4,020 | Includes blanking + monitoring. |
| UPS · Datacenter | Schneider Easy UPS 3M 100 kVA | 1 | $51,000 | $51,000 | Primary HPC/Storage power. |
| UPS · Sequencer | Schneider Easy UPS E3S 30 kVA | 2 | $15,000 | $30,000 | Dedicated to MGISeq & NovaSeq. |
| Structured Cabling | Network link works | 1 | $0 | $0 | Included in facility scope. |
| Services & Support | |||||
| Remote Implementation Service | Dongke Service | 1 | $12,000 | $12,000 | Architecture, WAN/HPC design, validation. |
| On-site Service | Deployment block | 1 | $5,000 | $5,000 | Hands-on install & handoff. |
| Annual Maintenance | Dongke Support | 1 | $6,000 | $6,000 | Remote monitoring + updates. |
| Total Program Estimate | $740,165 | Matches Excel overview tab (Server/Storage + Network + Facility + Support). | |||
Investment & Support Model (USD)
| Category | Included Items | Estimated Cost | Notes |
|---|---|---|---|
| Server & Storage Build | 5× Dell R760xs, 3× NetApp FAS2820 stacks, Precision consoles, OS / platform subs | $547,595 | Direct pull from “Server&Storage” sheet. |
| Network & Optics | Nexus 9300 pair, dual Catalyst 9200L, optics kits, OM4 fibers, accessory materials | $84,550 | Covers switching plus all transceivers & patching. |
| Facilities & Power | Dedicated cold aisle, dual 42U racks + PDUs, Easy UPS 3M 100 kVA, Easy UPS E3S 30 kVA, structured cabling | $85,020 | Matches “Facility” sheet (zero-cost lines retained). |
| Services & Support | Dongke remote implementation, on-site block, annual maintenance | $23,000 | Breakout equals “Support Service” tab. |
| Total Program Estimate | Server/Storage + Network + Facility + Support | $740,165 | Aligns with Excel “Overview” summary. |
Plan · Quote · Build · Run
Engagement spans four stages with iterative checkpoints to keep stakeholders aligned.
Plan
Validate requirements, confirm data growth, lock facility intake, finalize risk log.
Quote
Issue BoM + services SOW, align CrownBio + vendor timelines, secure approvals.
Build
Rack/stack, configure networks, deploy cluster/storage, execute integration tests.
Run
Cutover sequencers, monitor SLAs, optimize workloads, review quarterly with business.
